Miles M.35[1]

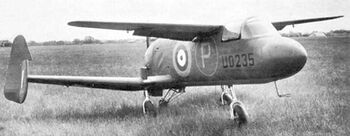

The Miles M.35 Libellula was a private airframe research aircraft.

Description[]

The M.35, drawn up in 1941 was powered by a single pusher engine, the pilot sat at the front with the fore wing just behind and level with his head giving a clear view in most directions. The wings and oval section fuselage were of all-wood construction, and the design featured a fixed tricycle landing gear. Elevators and flaps were hinged at the trailing edge of the front wings; and the rear wings carried ailerons and flaps, as well as a fin with a rudder on each wing tip. A flying example was built with typical Miles speed, in six weeks. The first flight was on 1 May 1942.

The type was followed by the M.39B

References[]

  1. Miles Libellula page at Warbird Resource Group
